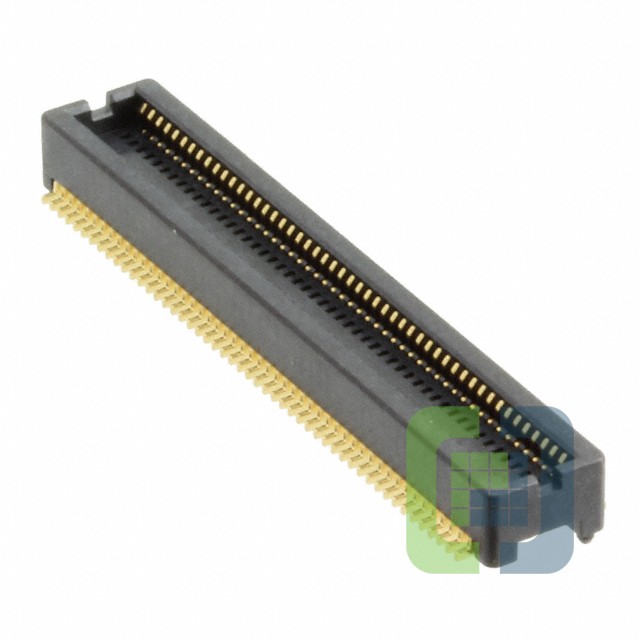

IL-312-A100SB-VFH05-A1-E3000
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 100POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:IL-312
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:100
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:3mm, 3.5mm
- Height Above Board:0.104" (2.65mm)
