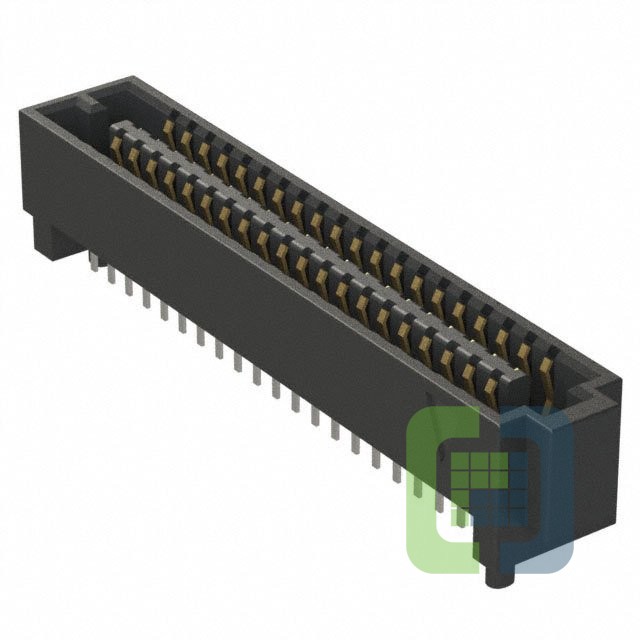

SEAF-20-08.0-S-04-1-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY RCPT 80P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAF-20-08.0-S-04-1-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SEARAY™ SEAF
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:High Density Array, Female
- Number of Positions:80
- Pitch:0.050" (1.27mm)
- Number of Rows:4
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:10mm, 11mm, 11.5mm, 14.5mm, 15mm, 17mm, 19mm
- Height Above Board:0.317" (8.05mm)
