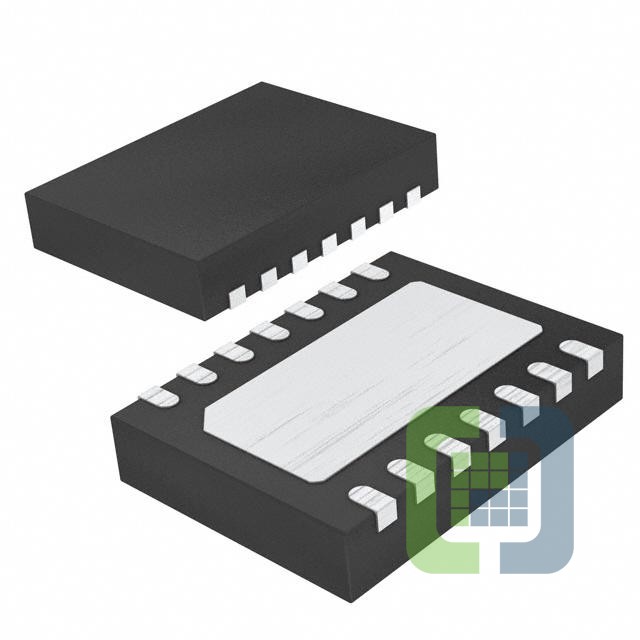

LT3681EDE#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 2A 14DFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3681EDE#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 2,760
Can ship immediately
Pricing:
- 1$8.88
- 2,500$4.84903
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3.6V
- Voltage - Input (Max):34V
- Voltage - Output (Min/Fixed):1.265V
- Voltage - Output (Max):20V
- Current - Output:2A
- Frequency - Switching:300kHz ~ 2.8MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-WFDFN Exposed Pad
- Supplier Device Package:14-DFN (4x3)
