LT3959EUHE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG MULTI CONFG ADJ 6A 36QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3959EUHE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 908
Can ship immediately
Pricing:
- 1$7.32
- 25$4.85732
- 100$4.01611
- 250$3.8153
- 500$3.72924
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive or Negative
- Topology:Boost, Cuk, SEPIC
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):1.6V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):40V (Switch)
- Current - Output:6A (Switch)
- Frequency - Switching:100kHz ~ 1MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

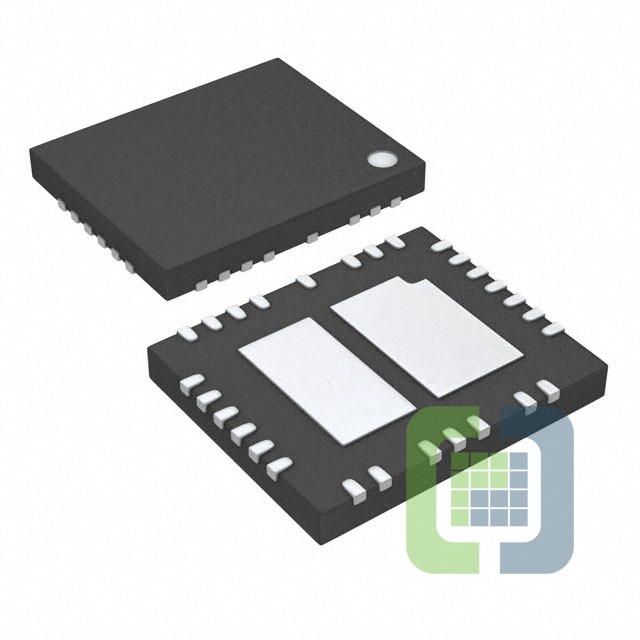

- Package / Case:36-WFQFN, 28 Leads, Exposed Pad
- Supplier Device Package:36-QFN (5x6)
