ADP5075ACBZ-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BCK BST INV 800MA 12WLCSP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet ADP5075ACBZ-R7 Datasheet
-
ECAD Model
- Share
In Stock: 4,792
Can ship immediately
Pricing:
- 1$3.1
- 3,000$1.43308
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Ratiometric, Step-Up/Step-Down
- Output Configuration:Negative
- Topology:Buck-Boost
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):2.85V
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):Vin-39V
- Voltage - Output (Max):-
- Current - Output:800mA
- Frequency - Switching:1.2MHz, 2.4MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

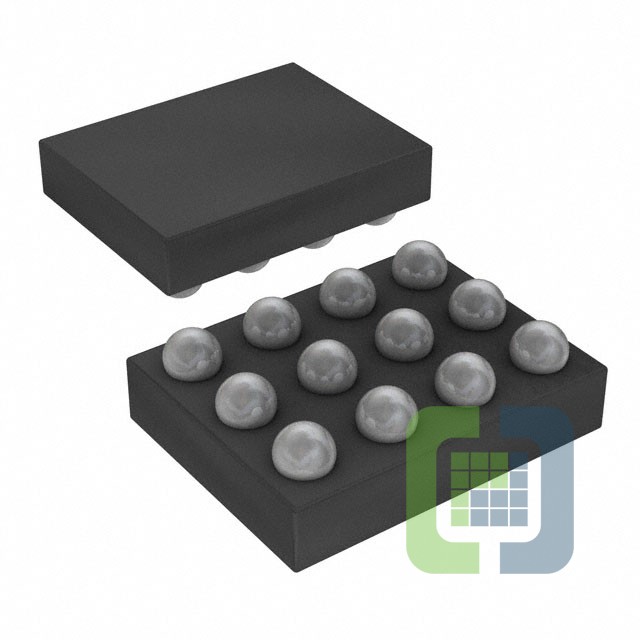

- Package / Case:12-WFBGA, WLCSP
- Supplier Device Package:12-WLCSP (1.61x2.18)
