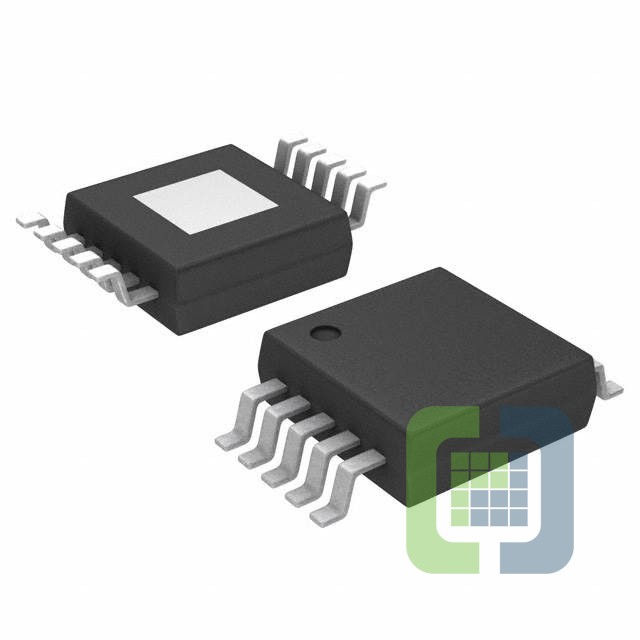

TPS54060ADGQ
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BCK SPLIT RAIL ADJ 10MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 1,092
Can ship immediately
Pricing:
- 1$3.26
- 10$2.92765
- 80$2.7673
- 160$2.3983
- 560$2.04166
- 1,040$1.72187
- 2,560$1.63578
- 5,040$1.57428
Quote It
Technical Details
- Series:SWIFT™, Eco-Mode™
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck, Split Rail
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3.5V
- Voltage - Input (Max):60V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):58V
- Current - Output:500mA
- Frequency - Switching:100kHz ~ 2.5MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:10-MSOP-PowerPad
