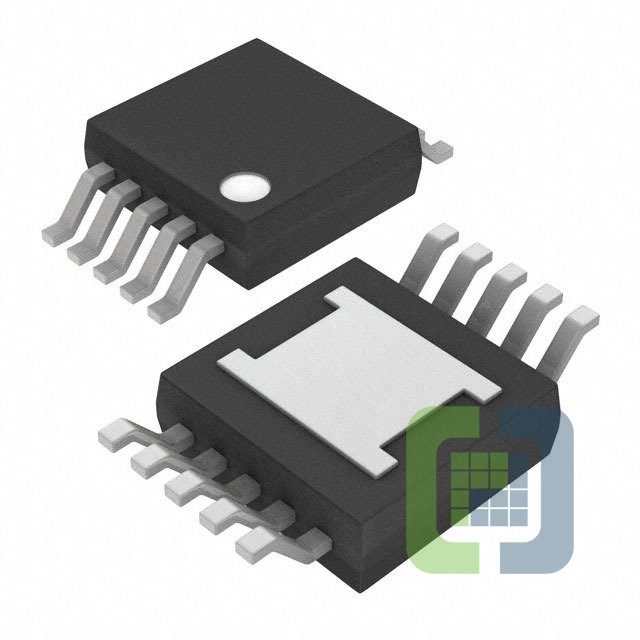

MAX16956AUBD/V+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK 5V 300MA 10UMAX
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX16956AUBD/V+ Datasheet
-
ECAD Model
- Share
In Stock: 4,082,588
Can ship immediately
Pricing:
- 1$5.23
- 10$4.7006
- 50$4.44367
- 100$3.85118
- 250$3.65369
- 500$3.27844
- 1,000$2.76495
- 2,500$2.6267
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):3.5V
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Current - Output:300mA
- Frequency - Switching:2.1MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:10uMAX-EP
