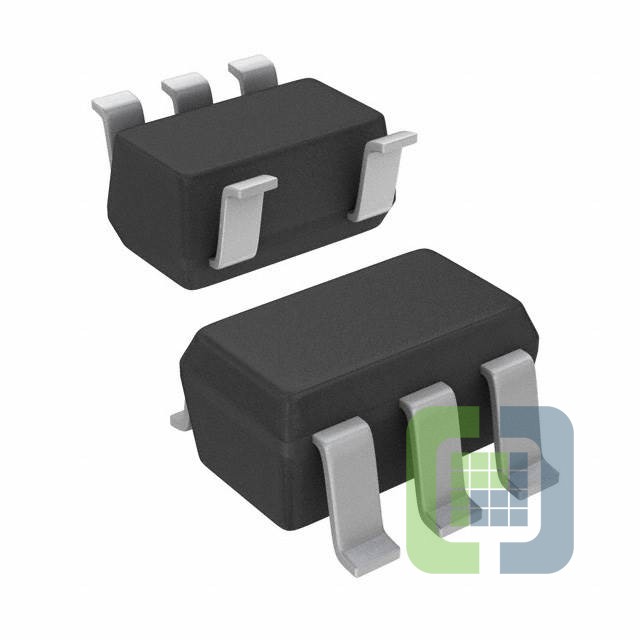

TPS60401DBVRG4
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARG PUMP INV 60MA SOT23
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 186
Can ship immediately
Pricing:
- 1$0.47094
- 3,000$0.47094
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Function:Ratiometric
- Output Configuration:Positive or Negative
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):1.8V
- Voltage - Input (Max):5.25V
- Voltage - Output (Min/Fixed):-Vin, 2Vin, Vin/2
- Voltage - Output (Max):-
- Current - Output:60mA
- Frequency - Switching:20kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
Related Products
IC REG CHARG PUMP INV 60MA SOT23
- 1: $0.47094
- 3000: $0.47094
IC REG 2.5-5.5V 2A SYNCH 1.1MHZ
- 1: $0.43500
- 5000: $0.42641
IC REG CHARGE PUMP 20MA SOT23-6
- 1: $0.42294
- 3000: $0.42000
- 6000: $0.39900
IC REG BUCK ADJUSTABLE 2A 8SOIC
- 1: $0.50100
- 2500: $0.50100
- 5000: $0.47681

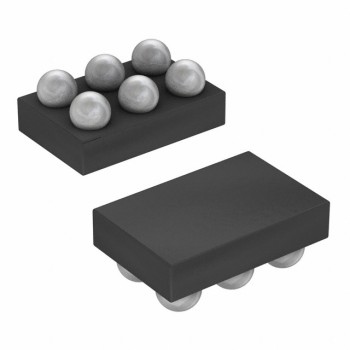

IC REG BOOST 3.3V 300MA 6WLCSP
- 1: $0.44850
- 3000: $0.44538

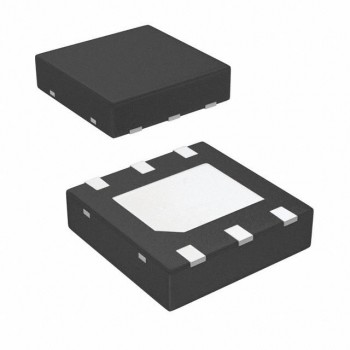

IC REG BUCK ADJUSTABLE 1A 6WSON
