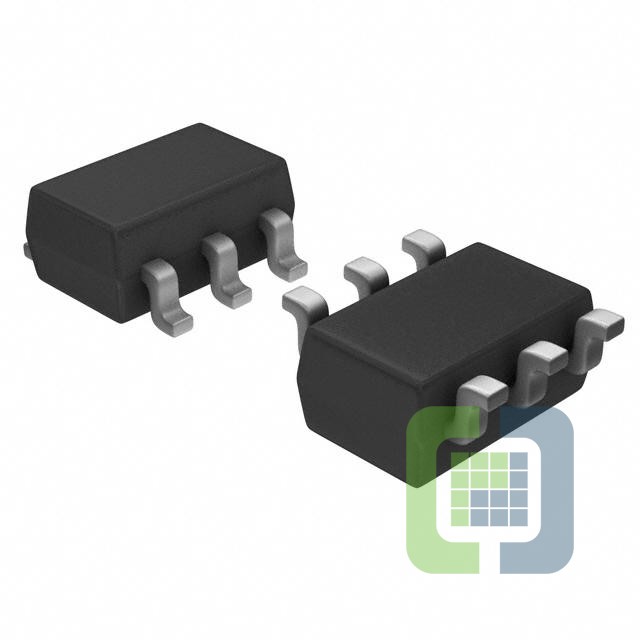

LM2681M6X/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARGE PUMP 20MA SOT23-6
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
- 1$0.42294
- 3,000$0.42
- 6,000$0.399
- 15,000$0.384
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Ratiometric
- Output Configuration:Positive
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):2.5V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2Vin, Vin/2
- Voltage - Output (Max):-
- Current - Output:20mA
- Frequency - Switching:80kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6
- Supplier Device Package:SOT-23-6
Related Products
IC REG BUCK ADJUSTABLE 2A 8SOIC
- 1: $0.50100
- 2500: $0.50100
- 5000: $0.47681
IC REG BOOST 3.3V 300MA 6WLCSP
- 1: $0.44850
- 3000: $0.44538
IC REG BUCK ADJUSTABLE 1A 6WSON
- 1: $0.51770
- 4500: $0.51770
- 9000: $0.49182
IC REG CHARGE PUMP 1.2V 10WSON
- 1: $0.42962
- 1000: $0.42962
- 2000: $0.40098

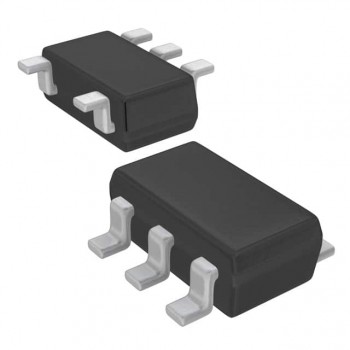

PFM STEP-UP SYNCHRONOUS DCDC CON
