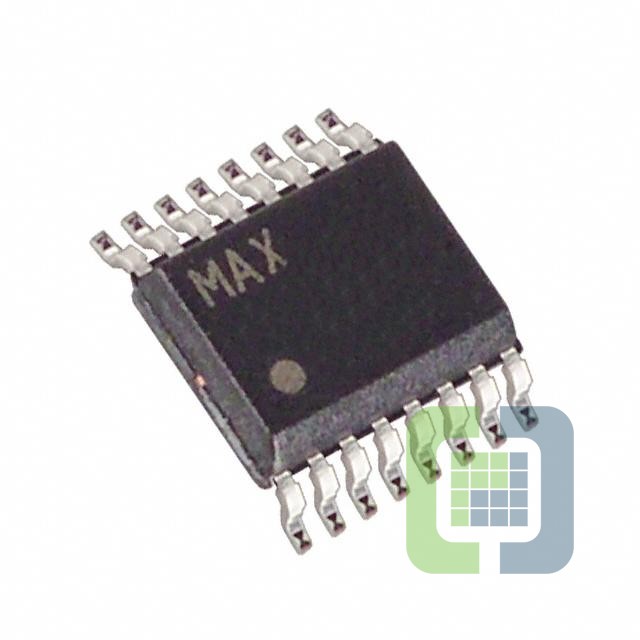

MAX768EEE+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHG PUMP ADJ/5V 16QSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX768EEE+ Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Function:Step-Up
- Output Configuration:Positive and Negative (Dual Rail)
- Topology:Charge Pump
- Output Type:Adjustable (Fixed)
- Number of Outputs:2
- Voltage - Input (Min):2.5V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):±1.25V (±5V)
- Voltage - Output (Max):±11V
- Current - Output:5mA
- Frequency - Switching:25kHz, 100kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:16-QSOP
