In Stock: 728

Can ship immediately

Pricing:
  • 1$3.39
  • 10$3.08647
  • 100$2.52947
  • 500$2.02357
  • 1,000$1.72004
  • 3,000$1.66945

Quote It

Technical Details

  • Series:aMOS™
  • Package:Tube
  • Part Status:Not For New Designs
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):600 V
  • Current - Continuous Drain (Id) @ 25°C:20A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:199mOhm @ 10A, 10V
  • Vgs(th) (Max) @ Id:4.1V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:19.8 nC @ 10 V
  • Vgs (Max):±30V
  • Input Capacitance (Ciss) (Max) @ Vds:1038 pF @ 100 V
  • FET Feature:-
  • Power Dissipation (Max):266W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-220
  • Package / Case:TO-220-3

Related Products


STF30N10F7

MOSFET N-CH 100V 24A TO220FP

STF30N10F7 Datasheet
  • 1: $3.50000
  • 50: $2.80946
  • 100: $2.55973

FCP13N60N

MOSFET N-CH 600V 13A TO220-3

FCP13N60N Datasheet
  • 1: $3.60000
  • 10: $3.21443
  • 100: $2.63596

IXFP36N20X3

MOSFET N-CH 200V 36A TO220

  • 1: $3.62000
  • 50: $2.91273
  • 100: $2.65371

IXFP26N30X3

MOSFET N-CH 300V 26A TO220AB

IXFP26N30X3 Datasheet
  • 1: $3.62000
  • 50: $2.91273
  • 100: $2.65371

AOT2502L

MOSFET N-CH 150V 18.5/106A TO220

AOT2502L Datasheet
  • 1: $3.67000
  • 10: $3.31566
  • 100: $2.77310

TK17N65W,S1F

MOSFET N-CH 650V 17.3A TO247

TK17N65W,S1F Datasheet
  • 1: $3.67000
  • 30: $2.94744
  • 120: $2.68544

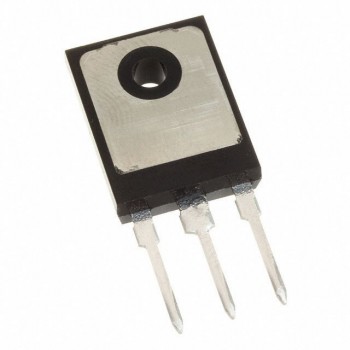

IPW60R180C7XKSA1
