LM317MTG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA TO220AB
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LM317MTG Datasheet
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
- 1$0.6
- 50$0.49642
- 100$0.40505
- 500$0.32021
- 1,000$0.25617
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):37V
- Voltage Dropout (Max):-
- Current - Output:500mA
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:80dB ~ 65dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C (TJ)
- Mounting Type:Through Hole

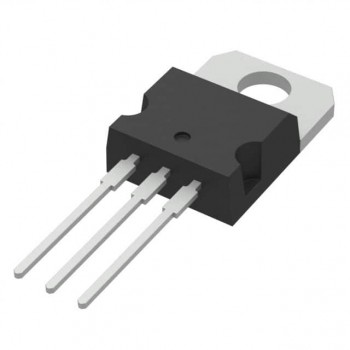

- Package / Case:TO-220-3
- Supplier Device Package:TO-220AB
