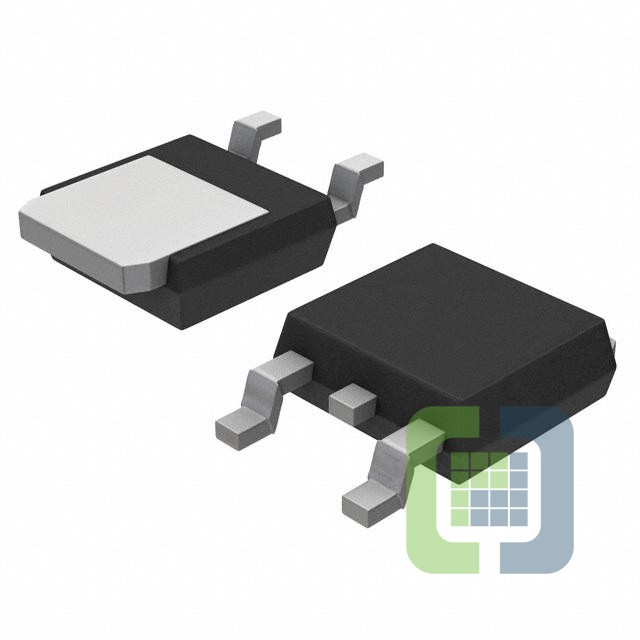

MC7815BDTG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 15V 1A DPAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MC7815BDTG Datasheet
-
ECAD Model
- Share
In Stock: 198,719,254
Can ship immediately
Pricing:
- 1$0.66
- 75$0.54291
- 150$0.44305
- 525$0.35024
- 1,050$0.28019
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):15V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 1A (Typ)
- Current - Output:1A
- Current - Quiescent (Iq):8 mA
- Current - Supply (Max):-
- PSRR:58dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:DPAK
Related Products
IC REG LINEAR 5V 500MA SOT223-4
- 1: $0.66000
- 10: $0.58016
- 80: $0.54450
IC REG LINEAR 5V 500MA SOT223-4
- 1: $0.66000
- 10: $0.58016
- 80: $0.54450

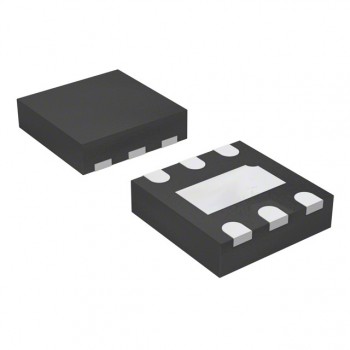

IC REG LINEAR 3.3V 200MA 6LFCSP
