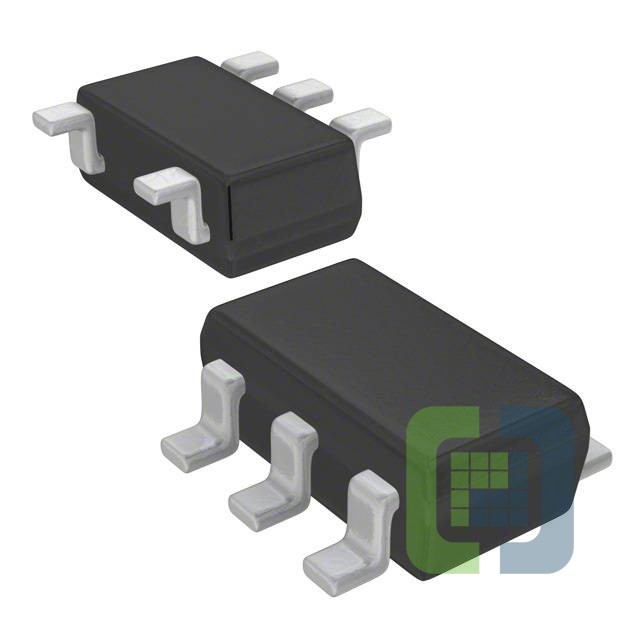

ADP3309ARTZ-3.3-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 100MA SOT23-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP3309ARTZ-3.3-R7 Datasheet
-
ECAD Model
- Share
In Stock: 3,082
Can ship immediately
Pricing:
- 1$2.28
- 3,000$1.05554
Quote It
Technical Details
- Series:anyCAP®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):12V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.25V @ 100mA
- Current - Output:100mA
- Current - Quiescent (Iq):300 µA
- Current - Supply (Max):2 mA
- PSRR:-
- Control Features:Error Flag, Shutdown
- Protection Features:Over Temperature
- Operating Temperature:-20°C ~ 80°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
