LM1086CS-5.0/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 5V 1.5A DDPAK/TO263-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 1,190
Can ship immediately
Pricing:
- 1$2.36
- 10$2.11977
- 45$2.00018
- 135$1.70417
- 540$1.40013
- 1,035$1.1601
- 2,520$1.0801
- 5,040$1.04009
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):25V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.5V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):10 mA
- PSRR:68dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount

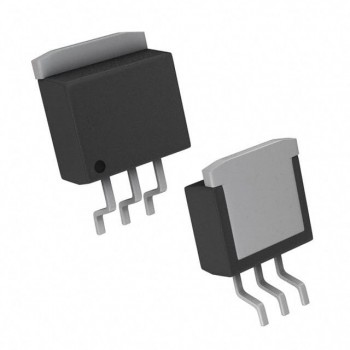

- Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Supplier Device Package:DDPAK/TO-263-3
