TS5205CX5 RFG
TSC (Taiwan Semiconductor)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 150MA SOT25
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet TS5205CX5 RFG Datasheet
-
ECAD Model
- Share
In Stock: 11,531
Can ship immediately
Pricing:
- 1$0.69
- 3,000$0.15779
- 6,000$0.14761
- 15,000$0.13743
- 30,000$0.1303
- 75,000$0.12725
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):1.24V
- Voltage - Output (Max):8V
- Voltage Dropout (Max):0.275V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):125 µA
- Current - Supply (Max):1.9 mA
- PSRR:75dB (100Hz)
- Control Features:Current Limit, Enable
- Protection Features:Over Temperature
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-25
Related Products
IC REG LINEAR 1.8V 150MA 4X2SON
- 1: $0.50000
- 250: $0.26260
- 500: $0.22220
IC REG LINEAR 3.3V 150MA 4X2SON
- 1: $0.50000
- 250: $0.26260
- 500: $0.22220

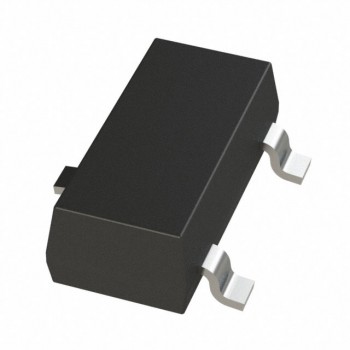

IC REG LINEAR 15V 100MA SOT23-3
