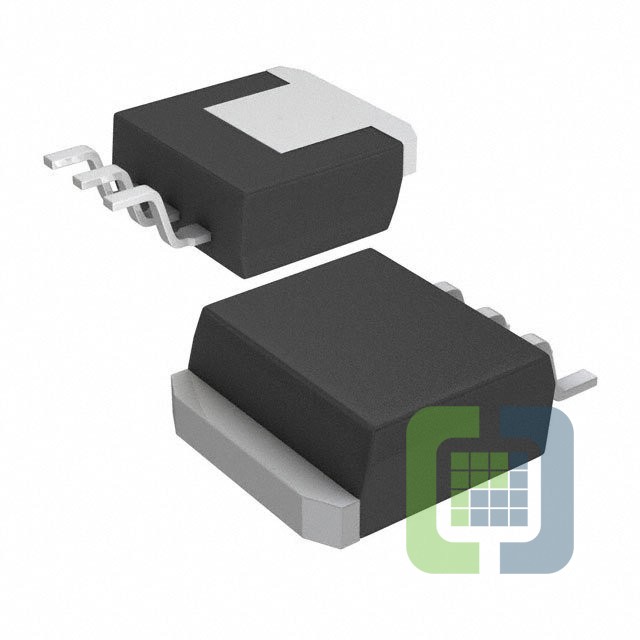

LM1086ISX-1.8/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 1.8V 1.5A DDPAK
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 2,483
Can ship immediately
Pricing:
- 1$1.97
- 500$1.1025
- 1,000$0.9135
- 2,500$0.8505
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):27V
- Voltage - Output (Min/Fixed):1.8V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.5V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):10 mA
- PSRR:72dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Supplier Device Package:DDPAK/TO-263-3
Related Products
IC REG LIN 9V 1A DDPAK/TO263-3
- 1: $2.11000
- 500: $1.18300
- 1000: $0.98020
IC REG LINEAR 3V 100MA TO252-3
- 1: $1.35000
- 10: $1.20445
- 75: $1.14286
IC REG LINEAR 2.5V 800MA 16LFCSP
ADP1752ACPZ-2.5-R7 Datasheet- 1: $2.91000
- 1500: $1.44649
- 3000: $1.34674

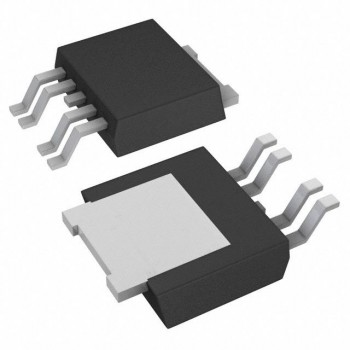

IC REG LINEAR 5V 300MA TO252-5
- 1: $2.95000
- 2500: $1.39650
- 5000: $1.34400
IC REG LINEAR 3.3V 1A TO252-3
- 1: $1.58000
- 10: $1.41882
- 75: $1.33879

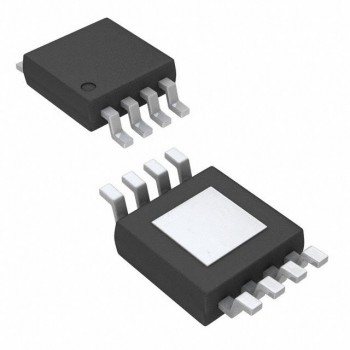

IC REG LIN 2.5V 250MA 8MSOP PWR
