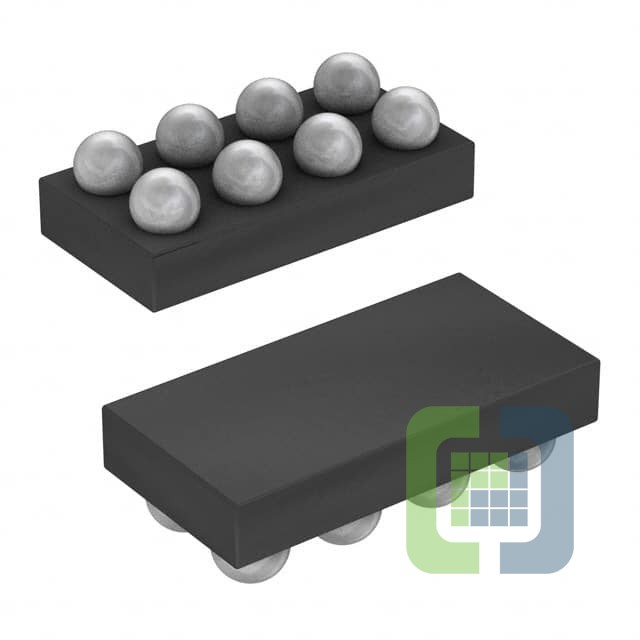

MAX8559EBAJJ+T
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.85V/2.85V 8UCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MAX8559EBAJJ+T Datasheet
-
ECAD Model
- Share
In Stock: 70,189
Can ship immediately
Pricing:
- 1$1.12
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):6.5V
- Voltage - Output (Min/Fixed):2.85V, 2.85V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.12V @ 100mA, 0.12V @ 100mA
- Current - Output:300mA, 300mA
- Current - Quiescent (Iq):290 µA
- Current - Supply (Max):-
- PSRR:70dB ~ 54dB (10kHz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:8-WFBGA, CSPBGA
- Supplier Device Package:8-UCSP (2.02x1.02)
