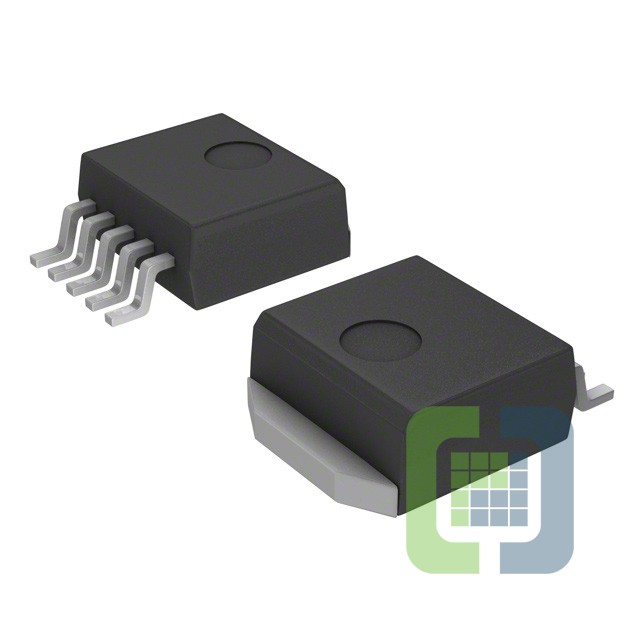

NCP630AD2TR4G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 3A D2PAK-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP630AD2TR4G Datasheet
-
ECAD Model
- Share
In Stock: 973
Can ship immediately
Pricing:
- 1$1.24
- 800$0.92103
- 1,600$0.76314
- 2,400$0.7105
- 5,600$0.68419
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):12V
- Voltage - Output (Min/Fixed):1.216V
- Voltage - Output (Max):10.75V
- Voltage Dropout (Max):1.25V @ 3A
- Current - Output:3A
- Current - Quiescent (Iq):1 mA
- Current - Supply (Max):2 mA
- PSRR:85dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:D2PAK-5
