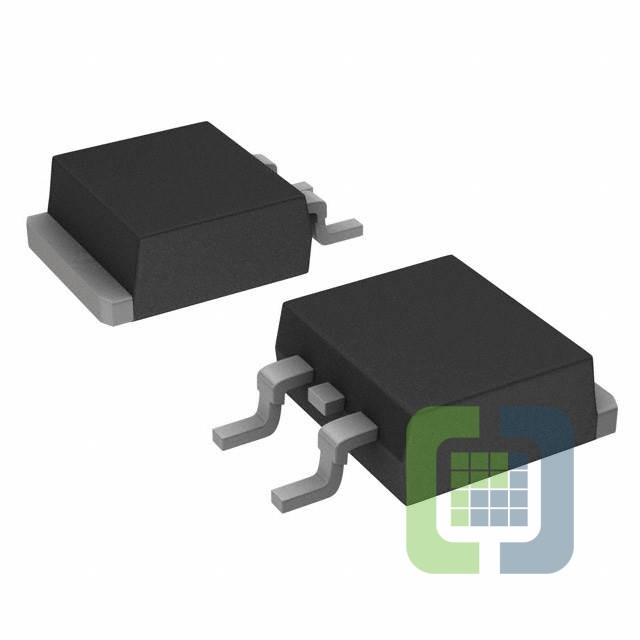

MC7815CD2TG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 15V 1A D2PAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MC7815CD2TG Datasheet
-
ECAD Model
- Share
In Stock: 99,818,483
Can ship immediately
Pricing:
- 1$0.79
- 50$0.65393
- 100$0.53366
- 500$0.42188
- 1,000$0.33751
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):15V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 1A (Typ)
- Current - Output:1A
- Current - Quiescent (Iq):6.5 mA
- Current - Supply (Max):-
- PSRR:58dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package:D2PAK
