ADP125ARHZ
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA 8MSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP125ARHZ Datasheet
-
ECAD Model
- Share
In Stock: 676
Can ship immediately
Pricing:
- 1$2.13
- 50$1.80158
- 100$1.53497
- 500$1.26111
- 1,000$1.04492
- 2,500$0.97286
- 5,000$0.93682
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):5V
- Voltage Dropout (Max):0.23V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):105 µA
- Current - Supply (Max):280 µA
- PSRR:60dB (10kHz ~ 100kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:8-MiniSO-EP
Related Products
IC REG LINEAR POS ADJ 250MA 8DIP
- 1: $2.14000
- 10: $1.92706
- 50: $1.81804
IC REG LINEAR 5V 250MA 8DIP
- 1: $2.14000
- 10: $1.92706
- 50: $1.81804
IC REG LIN POS ADJ 100MA DDPAK
- 1: $2.20000
- 10: $1.97365
- 100: $1.58601

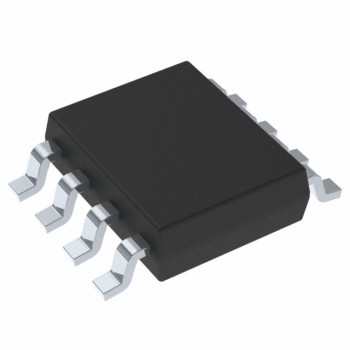

IC REG LIN POS ADJ 800MA 8SO
- 1: $2.25000
- 10: $2.02500
- 95: $1.91038

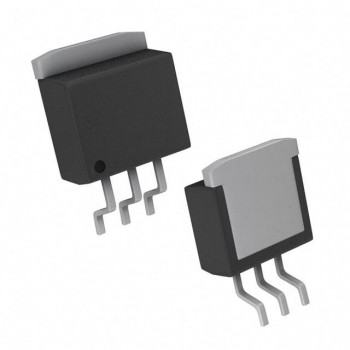

IC REG LIN 9V 1A DDPAK/TO263-3
