LM2940CS-9.0/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 9V 1A DDPAK/TO263-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 402
Can ship immediately
Pricing:
- 1$2.26
- 10$2.02976
- 45$1.91528
- 135$1.63171
- 540$1.34062
- 1,035$1.1108
- 2,520$1.03419
- 5,040$0.99589
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):9V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.8V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):15 mA
- PSRR:64dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Supplier Device Package:DDPAK/TO-263-3
Related Products
IC REG LINEAR 5V 50MA 8SOIC
- 1: $2.31000
- 10: $2.07670
- 95: $1.95953

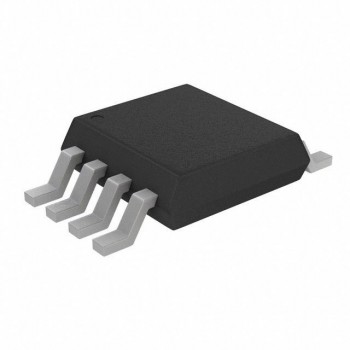

IC REG LIN POS ADJ 500MA 8UMAX
- 1: $2.31000
- 10: $2.07735
- 50: $1.95938
IC REG LIN 5V 100MA DDPAK/TO263
- 1: $2.34000
- 10: $2.09842
- 45: $1.98000
IC REG LIN 8V 1A DDPAK/TO263-3
- 1: $2.35000
- 10: $2.11394
- 45: $1.99390
IC REG LIN 10V 1A DDPAK/TO263-3
- 1: $2.35000
- 10: $2.11394
- 45: $1.99390
IC REG LIN 9V 1A DDPAK/TO263-3
- 1: $2.35000
- 10: $2.11394
- 45: $1.99390

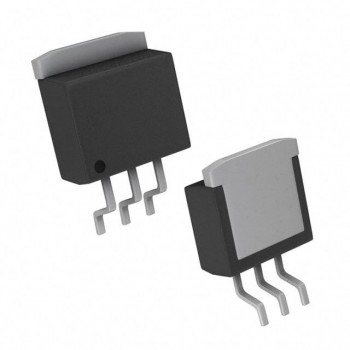

IC REG LIN 2.5V 1.5A DDPAK
