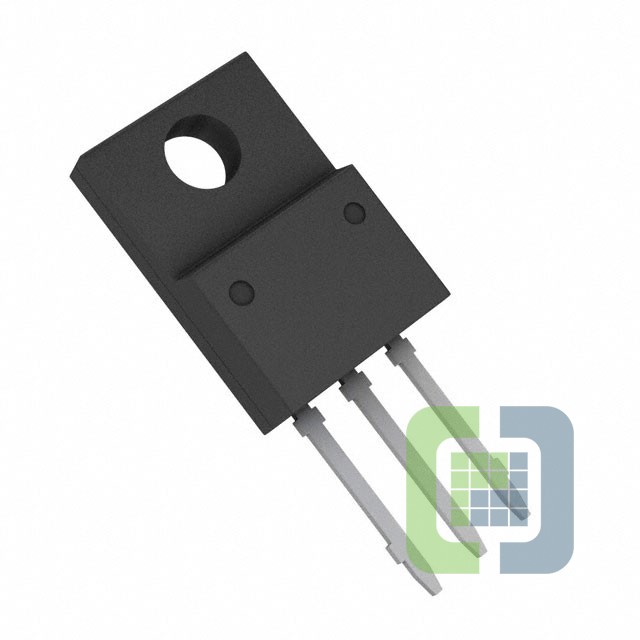

BA78M24CP-E2
ROHM Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 24V 500MA TO220CP-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet BA78M24CP-E2 Datasheet
-
ECAD Model
- Share
In Stock: 1,087
Can ship immediately
Pricing:
- 1$0.92
- 500$0.5282
- 1,000$0.417
- 2,500$0.3892
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):33V
- Voltage - Output (Min/Fixed):24V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 500mA (Typ)
- Current - Output:500mA
- Current - Quiescent (Iq):6 mA
- Current - Supply (Max):800 µA
- PSRR:55dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Through Hole
- Package / Case:TO-220-3 Cropped Leads
- Supplier Device Package:TO-220CP-3
