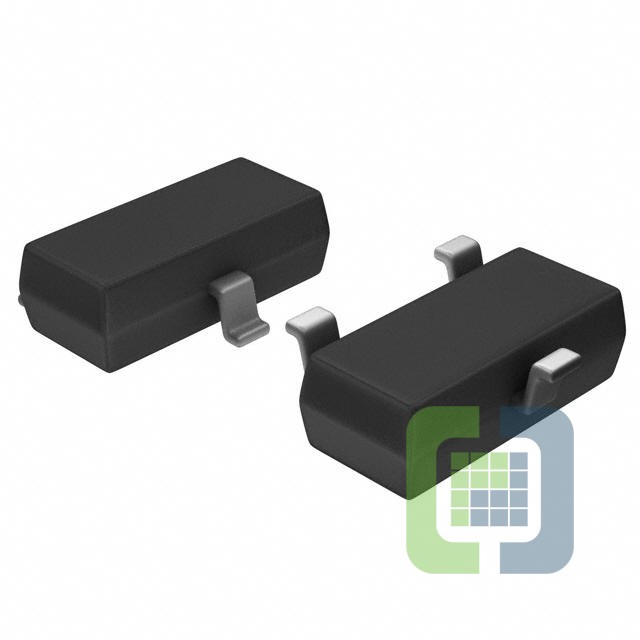

MCP1703T-3602E/CB
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 3.6V 250MA SOT23A-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MCP1703T-3602E/CB Datasheet
-
ECAD Model
- Share
In Stock: 583
Can ship immediately
Pricing:
- 1$0.57
- 3,000$0.4223
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):3.6V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.725V @ 250mA
- Current - Output:250mA
- Current - Quiescent (Iq):5 µA
- Current - Supply (Max):-
- PSRR:44dB (100Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:SOT-23A-3
