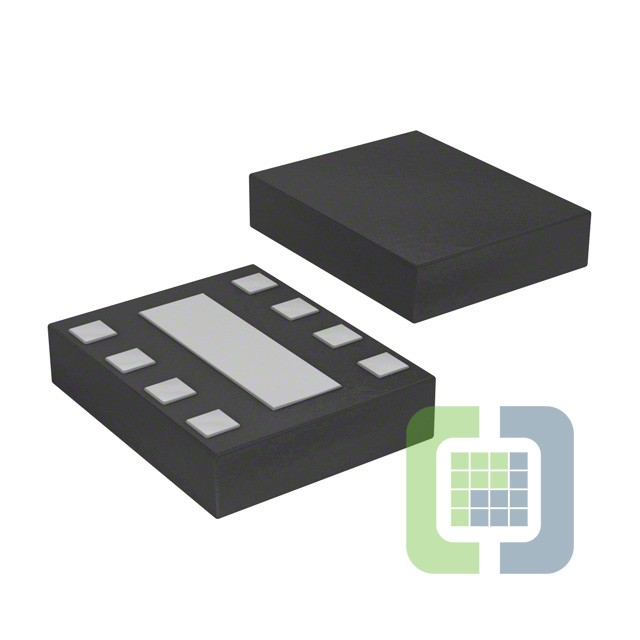

NCP186AMX120TAG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.2V 1A 8XDFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP186AMX120TAG Datasheet
-
ECAD Model
- Share
In Stock: 195,477,171
Can ship immediately
Pricing:
- 1$0.67
- 3,000$0.13283
- 6,000$0.12478
- 15,000$0.11673
- 30,000$0.10707
- 75,000$0.10304
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.585V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):140 µA
- Current - Supply (Max):-
- PSRR:75dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Soft Start
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-XFDFN Exposed Pad
- Supplier Device Package:8-XDFN (1.6x1.2)
