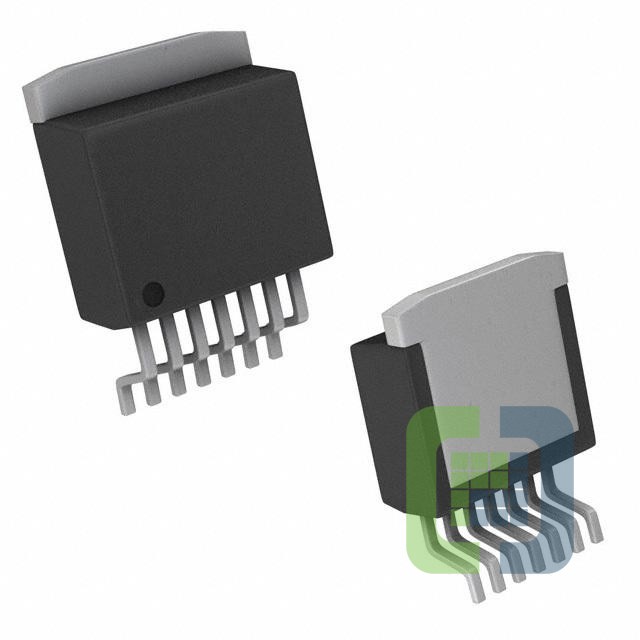

TPS74201KTWTG3
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 1.5A DDPAK
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$6.8
- 50$5.861
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):3.6V
- Voltage Dropout (Max):0.12V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):115 µA
- Current - Supply (Max):1.5 mA
- PSRR:73dB ~ 42dB (1kHz ~ 300kHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
- Supplier Device Package:DDPAK/TO-263-7
