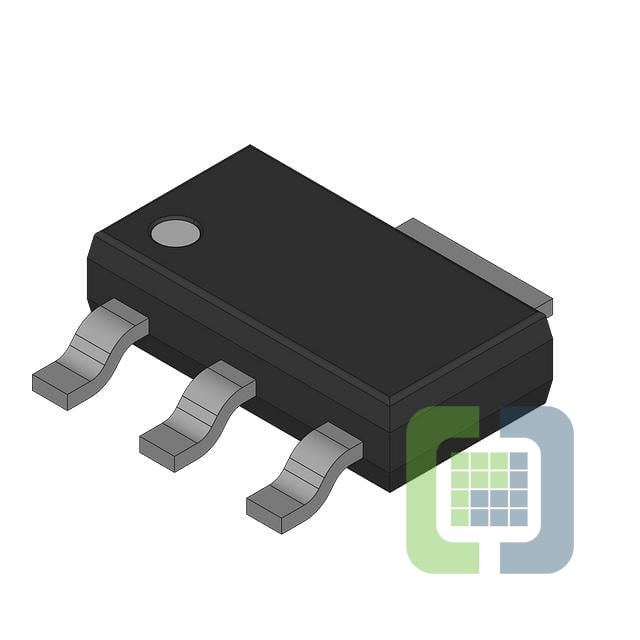

REG1117G4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 800MA SOT223
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 511
Can ship immediately
Pricing:
- 1$1.08
- 320$1.08
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):13.5V
- Voltage Dropout (Max):1.2V @ 800mA
- Current - Output:800mA
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:62dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-261-4, TO-261AA
- Supplier Device Package:SOT-223-4
