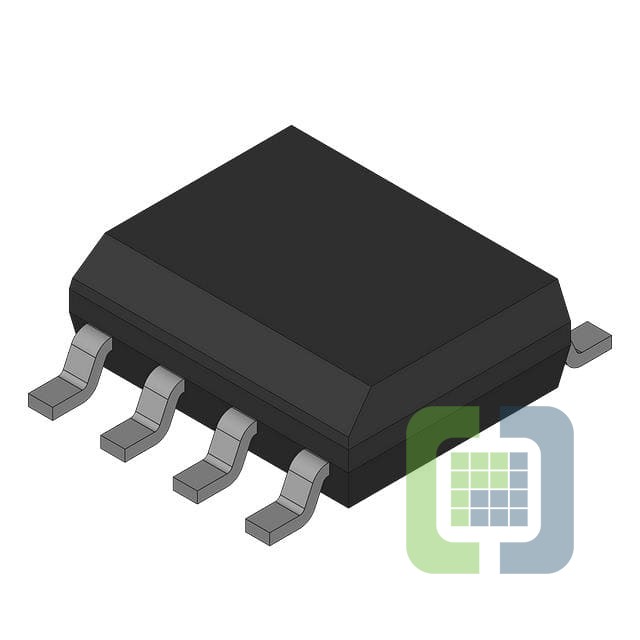

UCC284DP-12G4
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR -12V 500MA 8SOIC
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 220
Can ship immediately
Pricing:
- 1$3.23
- 150$3.23
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Configuration:Negative
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):-15V
- Voltage - Output (Min/Fixed):-12V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):250 µA
- Current - Supply (Max):-
- PSRR:-
- Control Features:Enable
- Protection Features:Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
