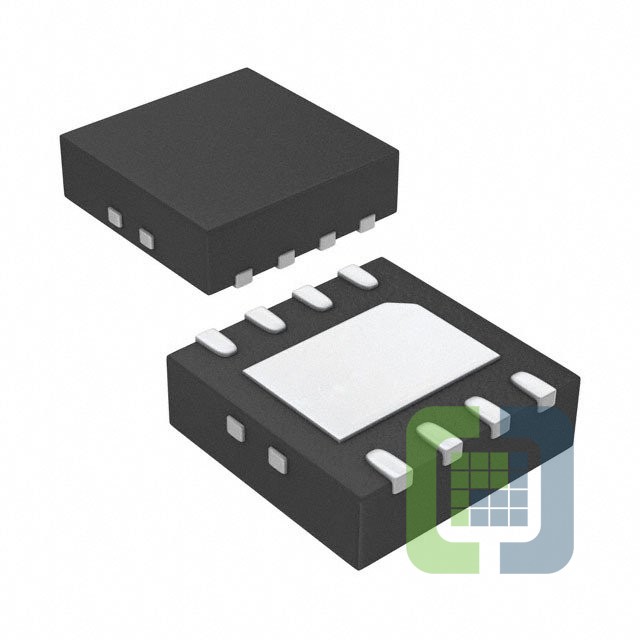

MPQ2013AGQ-AEC1-Z
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 150MA 8QFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MPQ2013AGQ-AEC1-Z Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
- 1$1.75
- 5,000$0.728
- 10,000$0.7
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.215V
- Voltage - Output (Max):15V
- Voltage Dropout (Max):1.1V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):9 µA
- Current - Supply (Max):50 µA
- PSRR:58dB ~ 41dB (100Hz ~ 1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-VDFN Exposed Pad
- Supplier Device Package:8-QFN (3x3)
