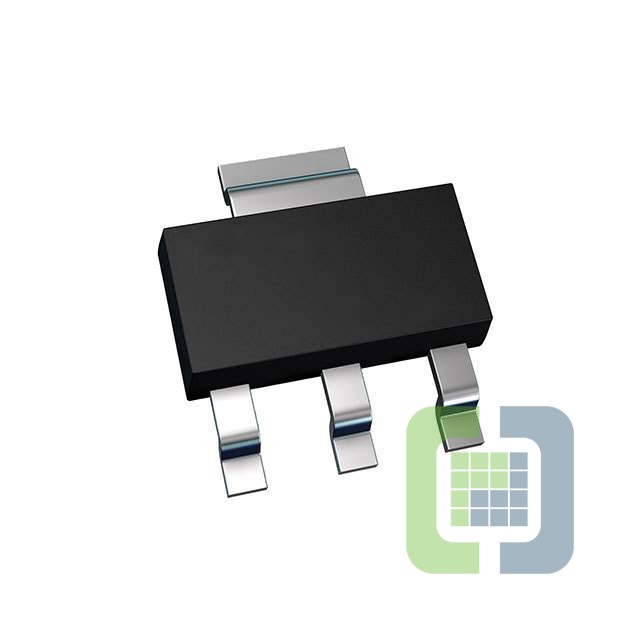

AZ1117H-3.3TRE1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 1A SOT223
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AZ1117H-3.3TRE1 Datasheet
-
ECAD Model
- Share
In Stock: 191
Can ship immediately
Pricing:
- 1$0.48
- 4,000$0.10116
- 8,000$0.09554
- 12,000$0.08711
- 28,000$0.08149
- 100,000$0.07194
Quote It
Technical Details
- Series:AZ1117
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.25V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:75dB (120Hz)
- Control Features:-
- Protection Features:Thermal Shutdown
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-261-4, TO-261AA
- Supplier Device Package:SOT-223
