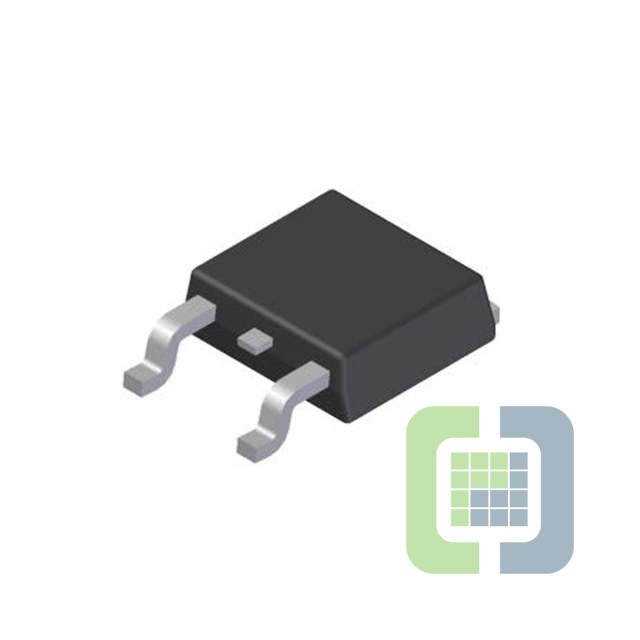

AZ1117CD-3.3TRG1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 1A TO252-2
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AZ1117CD-3.3TRG1 Datasheet
-
ECAD Model
- Share
In Stock: 110
Can ship immediately
Pricing:
- 1$0.44
- 2,500$0.11715
- 5,000$0.11005
- 12,500$0.10295
- 25,000$0.09443
- 62,500$0.09088
Quote It
Technical Details
- Series:AZ1117C
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.4V @ 800mA
- Current - Output:1A
- Current - Quiescent (Iq):6 mA
- Current - Supply (Max):-
- PSRR:70dB (120Hz)
- Control Features:-
- Protection Features:Thermal Shutdown
- Operating Temperature:-20°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:TO-252-3
