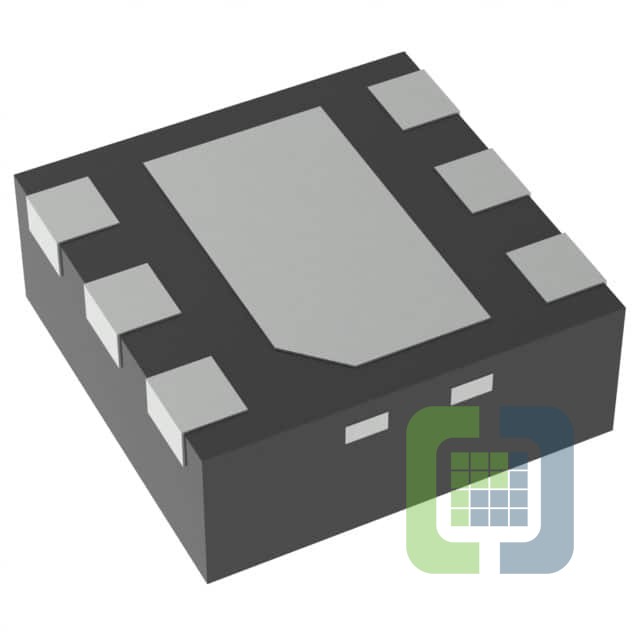

TPS7A2601DRVT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA 6WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$1.74
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):18V
- Voltage - Output (Min/Fixed):1.24V
- Voltage - Output (Max):17.4V
- Voltage Dropout (Max):0.355V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):4.5 µA
- Current - Supply (Max):-
- PSRR:75dB ~ 52dB (10Hz ~ 1kHz)
- Control Features:Enable, Power Good
- Protection Features:Over Current, Over Temperature, UVLO
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:6-WDFN Exposed Pad
- Supplier Device Package:6-WSON (2x2)
