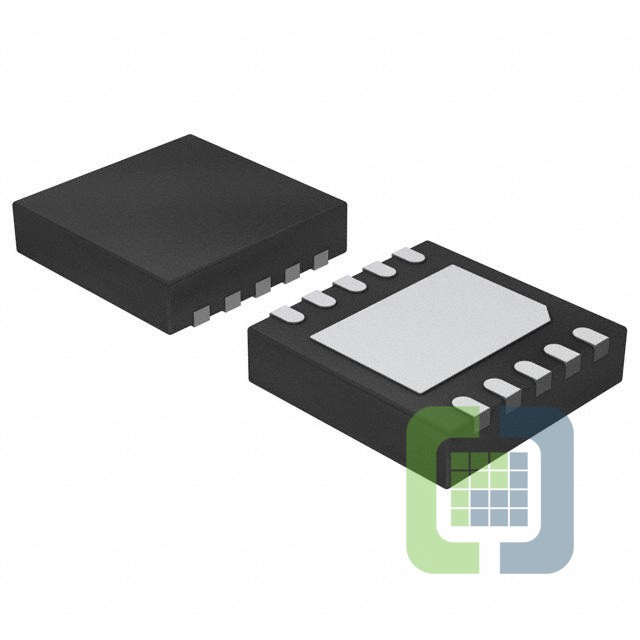

NCV8537MNADJR2G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 500MA 10DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV8537MNADJR2G Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$0.96
- 3,000$0.3161
- 6,000$0.2943
- 15,000$0.2834
- 30,000$0.2725
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):12V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):10V
- Voltage Dropout (Max):0.34V @ 500mA (Typ)
- Current - Output:500mA
- Current - Quiescent (Iq):220 µA
- Current - Supply (Max):14 mA
- PSRR:-
- Control Features:Enable, Power Good
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:10-VFDFN Exposed Pad
- Supplier Device Package:10-DFN (3x3)
