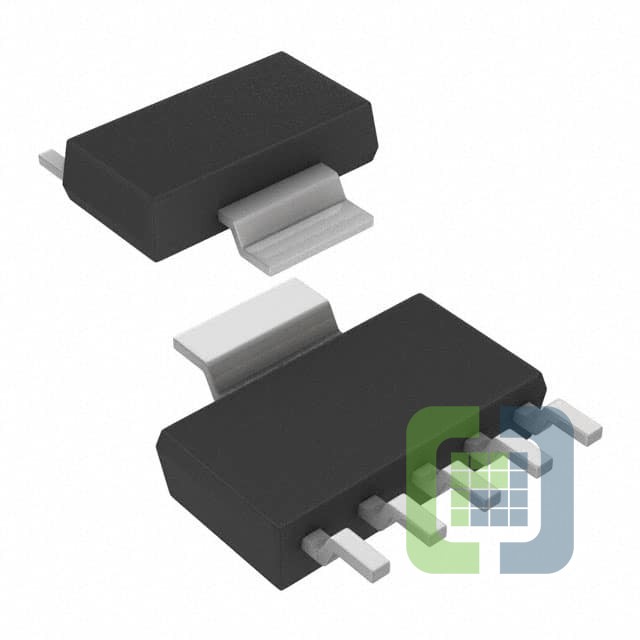

MCP1754T-3302E/DC
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 3.3V 150MA SOT223-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MCP1754T-3302E/DC Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$0.533
- 4,000$0.51792
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):90 µA
- Current - Supply (Max):250 µA
- PSRR:72dB (1kHz)
- Control Features:Power Good, Shutdown
- Protection Features:Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SOT-223-6
- Supplier Device Package:SOT-223-5
