MP20142DGT-LF-P
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.5V 200MA/8TQFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MP20142DGT-LF-P Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
- 1$1.0017
- 500$0.97279
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Not For New Designs
- Output Configuration:Positive
- Output Type:Programmable
- Number of Regulators:2
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.5V
- Voltage - Output (Max):3.3V
- Voltage Dropout (Max):0.12V @ 100mA, 0.12V @ 100mA
- Current - Output:200mA, 200mA
- Current - Quiescent (Iq):90 µA
- Current - Supply (Max):150 µA
- PSRR:75dB (100Hz ~ 1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

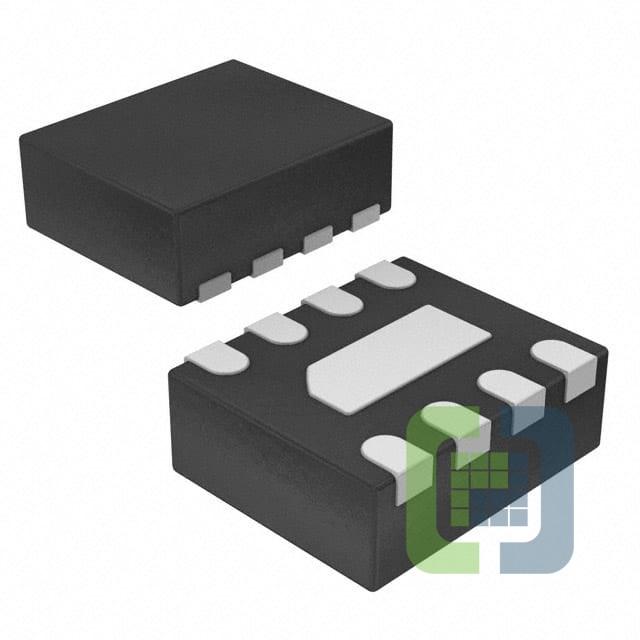

- Package / Case:8-VFDFN Exposed Pad
- Supplier Device Package:8-TQFN (2x2)
