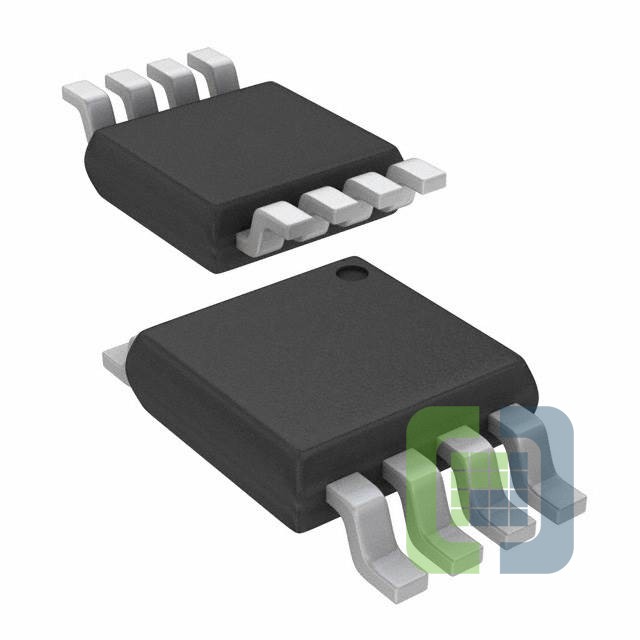

LM2936QMMX-3.3/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 50MA 8VSSOP
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
- 1$1.21242
- 3,500$1.18778
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.2V @ 50mA
- Current - Output:50mA
- Current - Quiescent (Iq):15 µA
- Current - Supply (Max):2.5 mA
- PSRR:60dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-VSSOP
