BD750L2FP2-CE2

Technical Details

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):45V
• Voltage - Output (Min/Fixed):5V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.7V @ 200mA

• Current - Output:200mA
• Current - Quiescent (Iq):15 µA
• Current - Supply (Max):-
• PSRR:60dB (120Hz)
• Control Features:-
• Protection Features:Over Current, Thermal Shutdown
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

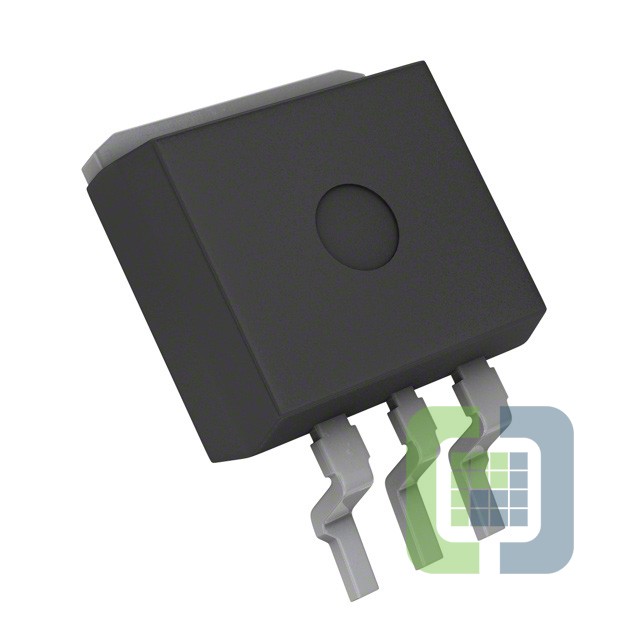

• Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
• Supplier Device Package:TO-263-3
