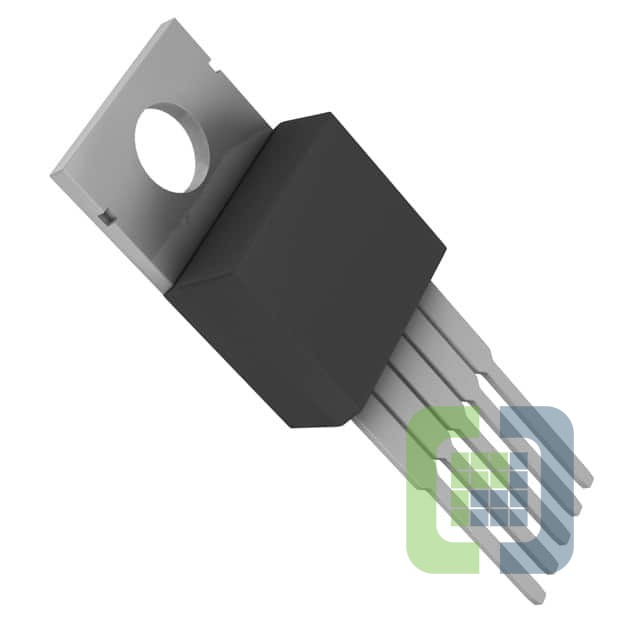

AP1184T5-25L-U
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.5V 4A TO220-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP1184T5-25L-U Datasheet
-
ECAD Model
- Share
In Stock: 1,179
Can ship immediately
Pricing:
- 1$1.29
- 50$1.09544
- 100$0.89983
- 500$0.74334
Quote It
Technical Details
- Series:-
- Package:TubeTube
- Part Status:Discontinued at Digi-Key
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.85V @ 4A
- Current - Output:4A
- Current - Quiescent (Iq):25 mA
- Current - Supply (Max):70 mA
- PSRR:70dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C (TJ)
- Mounting Type:Through Hole
- Package / Case:TO-220-5
- Supplier Device Package:TO-220-5
