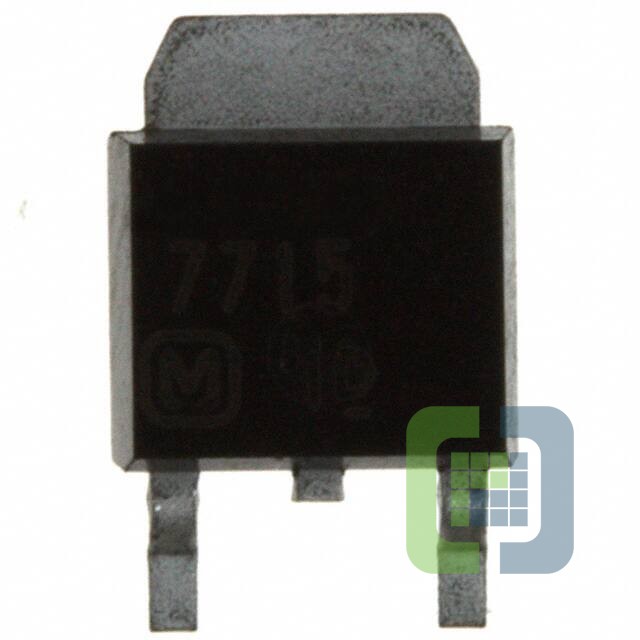

AN7715SP-E1
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 15V 1.2A SP3SUA
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AN7715SP-E1 Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):26.5V
- Voltage - Output (Min/Fixed):15V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:1.2A
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):-
- PSRR:60dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:25°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:SP-3SUA
