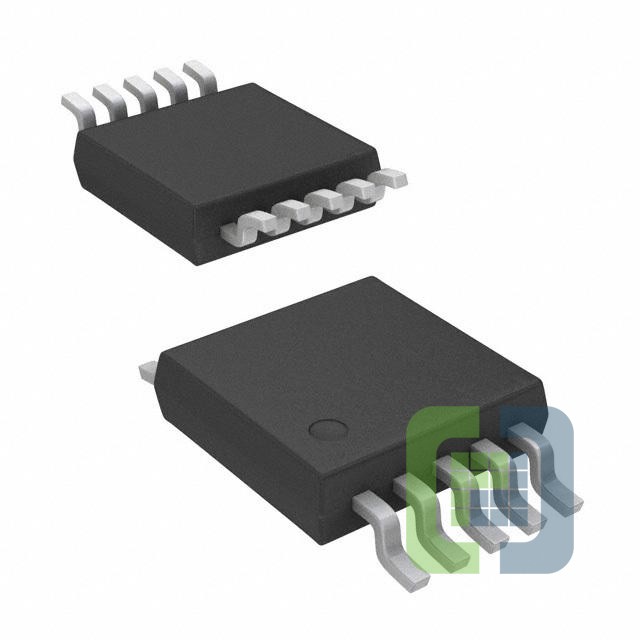

TC1305R-DVUN
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 2.5V/2.8V/3V 10MSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet TC1305R-DVUN Datasheet
-
ECAD Model
- Share
In Stock: 110
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Programmable
- Number of Regulators:2
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):2.5V, 2.8V, 3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.36V @ 150mA, 0.36V @ 150mA
- Current - Output:150mA, 150mA
- Current - Quiescent (Iq):160 µA
- Current - Supply (Max):-
- PSRR:64dB (120Hz)
- Control Features:Enable, Reset
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:10-MSOP
