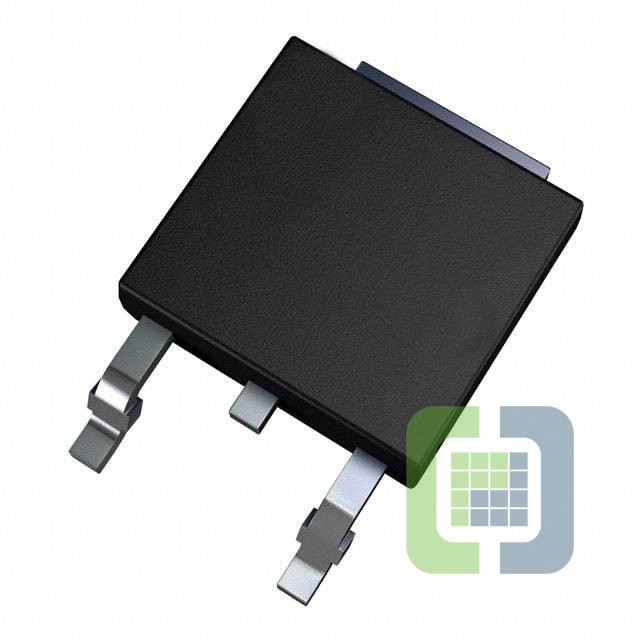

LD1117DT30
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3V 800MA DPAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LD1117DT30 Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.2V @ 800mA
- Current - Output:800mA
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:75dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:DPAK
