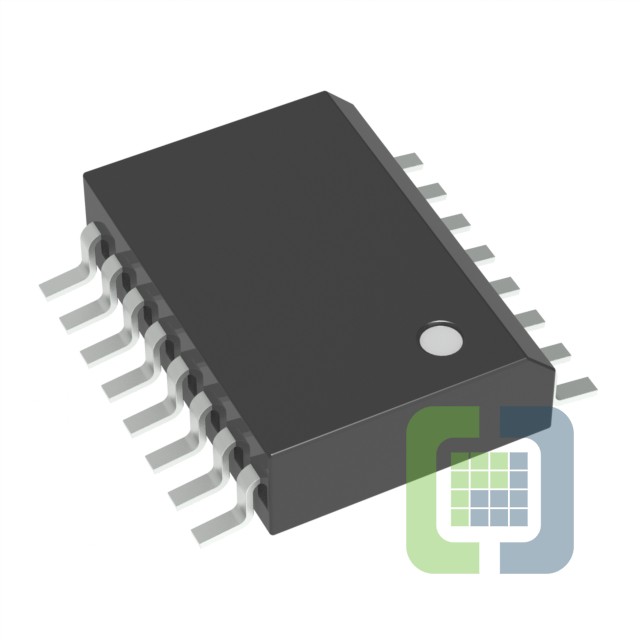

CS8361YDWFR16
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 5V 100MA/250MA 16SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet CS8361YDWFR16 Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):5V, Tracking
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.6V @ 100mA, 0.7V @ 250mA
- Current - Output:100mA, 250mA
- Current - Quiescent (Iq):200 µA
- Current - Supply (Max):50 mA
- PSRR:70dB (120Hz)
- Control Features:Enable, Reset
- Protection Features:Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:16-SOIC
