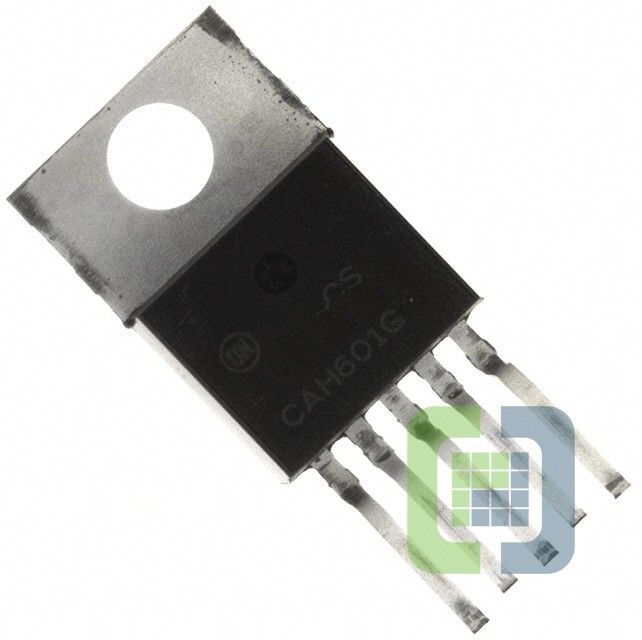

CS8147YTVA5
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 10V/5V TO220-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet CS8147YTVA5 Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):10V, 5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.7V @ 500mA, 2.5V @ 70mA
- Current - Output:500mA, 70mA
- Current - Quiescent (Iq):7 mA
- Current - Supply (Max):120 mA
- PSRR:-
- Control Features:Enable
- Protection Features:Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-5 Formed Leads
- Supplier Device Package:TO-220-5 Vertical
