ST2L01PTR
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A/1A PPAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ST2L01PTR Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable (Fixed)
- Number of Regulators:2
- Voltage - Input (Max):5.25V
- Voltage - Output (Min/Fixed):1.25V (3.3V)
- Voltage - Output (Max):3V
- Voltage Dropout (Max):1.3V @ 1A, 1.3V @ 1A
- Current - Output:1A, 1A
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:70db ~ 38dB (1kHz ~ 100kHz), 80dB (43dB (1kHz ~ 100kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount

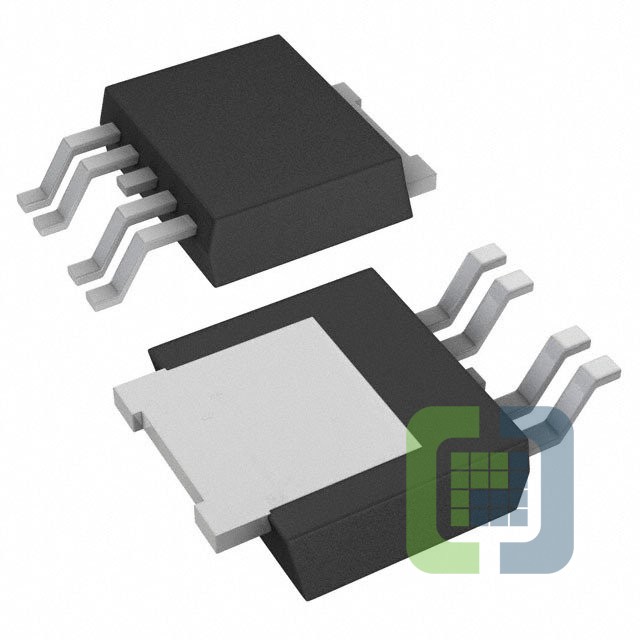

- Package / Case:TO-252-5, DPak (4 Leads + Tab), TO-252AD
- Supplier Device Package:PPAK
