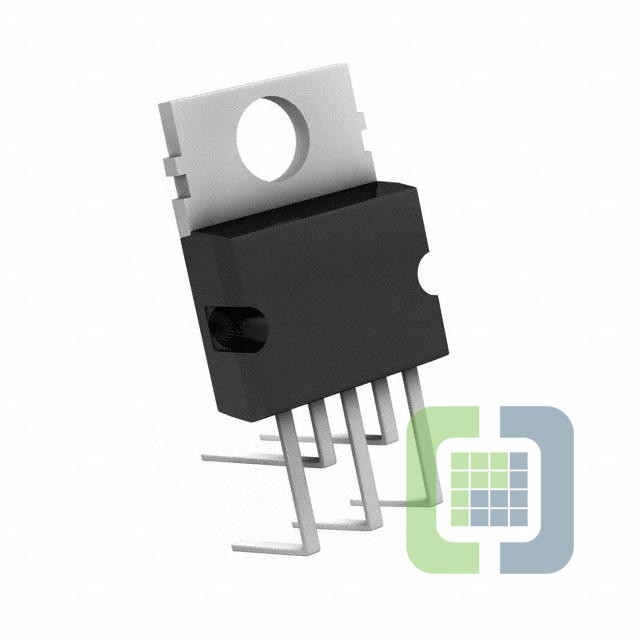

L4947H
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 5V 500MA 5PENTAWATT
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet L4947H Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.75V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):13 mA
- Current - Supply (Max):180 mA
- PSRR:60dB (120Hz)
- Control Features:Reset
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:Pentawatt-5 (Horizontal, Bent and Staggered Leads)
- Supplier Device Package:5-PENTAWATT
