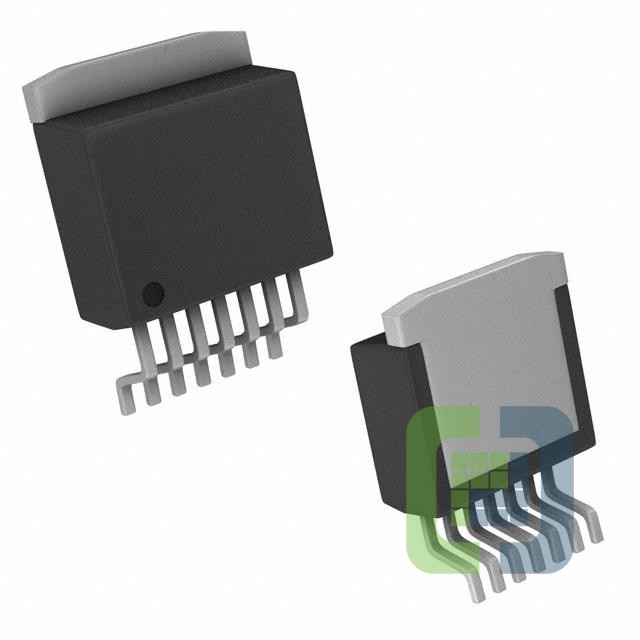

CS8126-1YDPS7
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 750MA D2PAK-7
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet CS8126-1YDPS7 Datasheet
-
ECAD Model
- Share
In Stock: 172
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.6V @ 500mA
- Current - Output:750mA
- Current - Quiescent (Iq):70 mA
- Current - Supply (Max):100 mA
- PSRR:75dB (120Hz)
- Control Features:Reset
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
- Supplier Device Package:D2PAK-7
