L4909

Technical Details

• Series:-
• Package:Tube
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:3
• Voltage - Input (Max):40V
• Voltage - Output (Min/Fixed):5V
• Voltage - Output (Max):12V
• Voltage Dropout (Max):2.2V @ 500mA, 2.2V @ 500mA, 2.2V @ 500mA

• Current - Output:1.2A, 1.2A, 1.2A
• Current - Quiescent (Iq):11 mA
• Current - Supply (Max):29 mA
• PSRR:60dB (120Hz ~ 1kHz)
• Control Features:Enable, Trigger
• Protection Features:Over Current, Over Temperature, Short Circuit
• Operating Temperature:0°C ~ 70°C
• Mounting Type:Through Hole

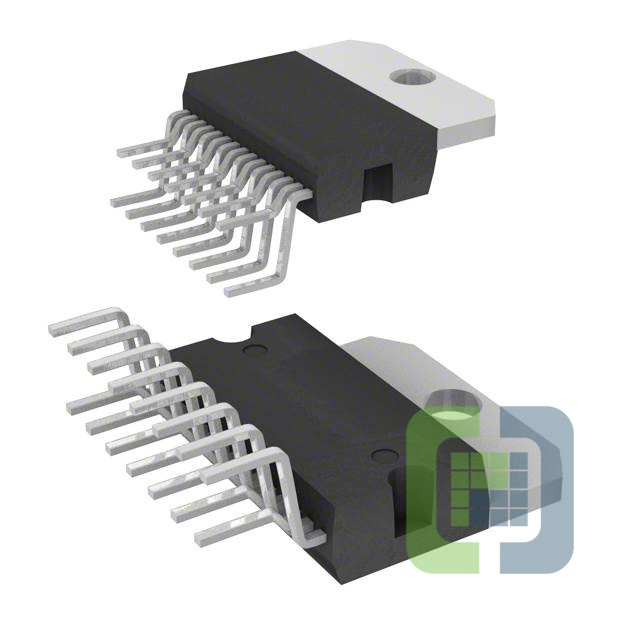

• Package / Case:Multiwatt-15 (Vertical, Bent and Staggered Leads)
• Supplier Device Package:15-Multiwatt
