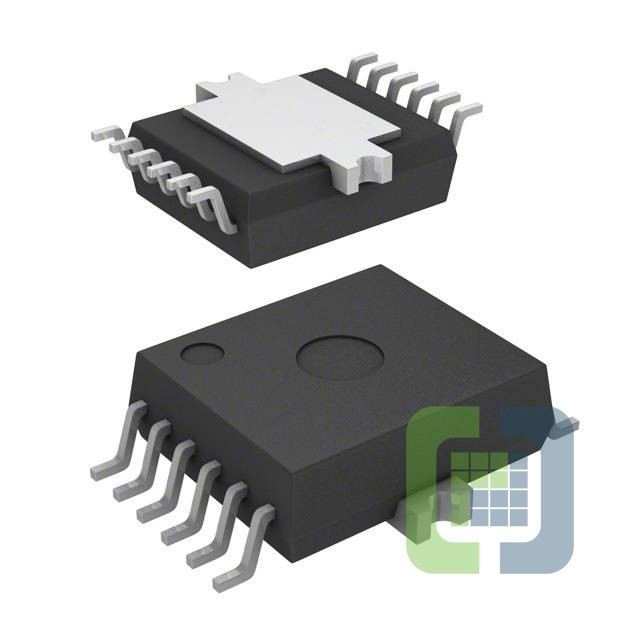

TLE4473GV53AUMA1
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V/5V DSO12-6
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet TLE4473GV53AUMA1 Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Automotive, AEC-Q100, OPTIREG™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Discontinued at Digi-Key
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):42V
- Voltage - Output (Min/Fixed):3.3V, 5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-, 0.6V @ 100mA
- Current - Output:300mA, 180mA
- Current - Quiescent (Iq):265 µA
- Current - Supply (Max):20 mA
- PSRR:65dB (100Hz), 65dB (100Hz)
- Control Features:Inhibit, Reset, Watchdog
- Protection Features:Over Current, Over Temperature, Short Circuit, Transient Voltage
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:12-BSOP (0.295", 7.50mm Width) Exposed Pad
- Supplier Device Package:P-DSO-12-6
