796859-6
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant

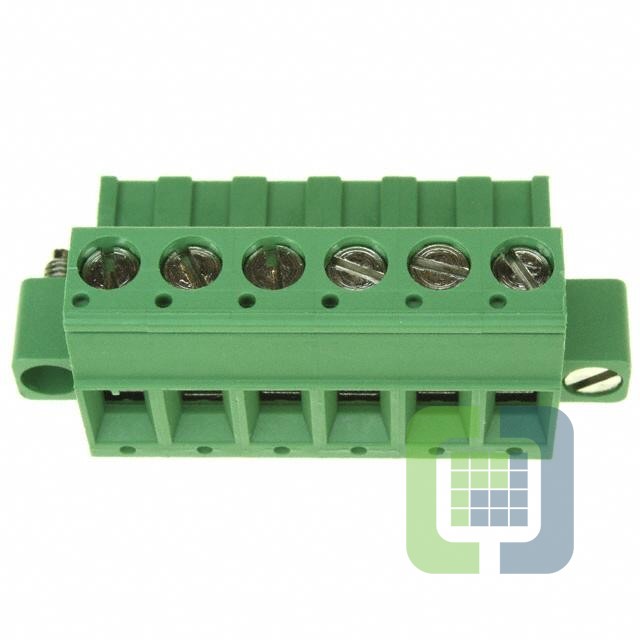

- DescriptionTERM BLOCK PLUG 6POS STR 5.08MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 796859-6 Datasheet
-
ECAD Model
- Share
In Stock: 139
Can ship immediately
Pricing:
- 1$8.19
- 10$7.017
- 25$6.696
- 50$6.0194
- 100$5.6988
- 250$5.16452
- 500$4.80836
- 1,000$4.54123
Quote It
Technical Details
- Series:Buchanan
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Type:Plug, Female Sockets
- Number of Positions:6
- Positions Per Level:6
- Number of Levels:1
- Pitch:0.200" (5.08mm)
- Header Orientation:-
- Plug Wire Entry:180°
- Termination Style:Screw - Rising Cage Clamp
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:15 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:12-30 AWG
- Wire Gauge or Range - mm²:0.05-3mm²
- Color:Green
- Operating Temperature:-40°C ~ 110°C
- Contact Mating Finish:Tin
- Features:Mating Flange
