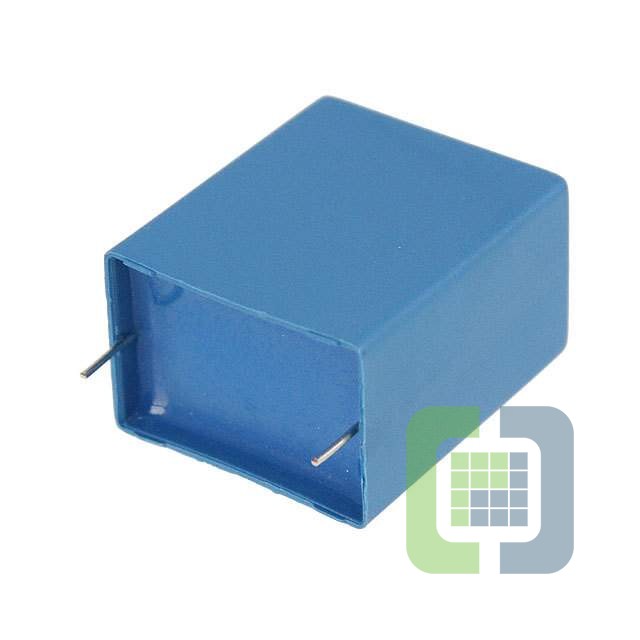

B32794D4225K

Technical Details

• Series:B32794
• Package:Bulk
• Part Status:Obsolete
• Capacitance:2.2 µF
• Tolerance:±10%
• Voltage Rating - AC:400V
• Voltage Rating - DC:1050V (1.05kV)
• Dielectric Material:Polypropylene (PP), Metallized
• ESR (Equivalent Series Resistance):10.4 mOhms
• Operating Temperature:-40°C ~ 85°C

• Mounting Type:Through Hole
• Package / Case:Radial
• Size / Dimension:1.240" L x 0.551" W (31.50mm x 14.00mm)
• Height - Seated (Max):0.965" (24.50mm)
• Termination:PC Pins
• Lead Spacing:1.083" (27.50mm)
• Applications:DC Link, DC Filtering; EMI, RFI Suppression
• Ratings:-
• Features:-
